Using Propensity Scores

Propensity scores

Matching

Weighting

Stratification

Direct Adjustment

…

Image source: Simon Grund

Propensity scores

Matching

Weighting

Stratification

Direct Adjustment

…

Target estimands

Average Treatment Effect (ATE)

Target estimands

Estimand	Target population	Example Research Question
ATE	Full population	Should we decide whether to have extra magic hours all mornings to change the wait time for Seven Dwarfs Mine Train between 9-10 AM? Should a specific policy be applied to all eligible observations?

ATE

Full population

Should we decide whether to have extra magic hours all mornings to change the wait time for Seven Dwarfs Mine Train between 9-10 AM?

Should a specific policy be applied to all eligible observations?

Target estimands

Average Treatment Effect among the Treated (ATT)

Target estimands

Estimand	Target population	Example Research Question
ATT	Exposed (treated) observations	Should we stop extra magic hours to change the wait time for Seven Dwarfs Mine Train between 9-10 AMpm? Should we stop our marketing campaign to those currently receiving it? Should medical providers stop recommending treatment for those currently receiving it?

ATT

Exposed (treated) observations

Should we stop extra magic hours to change the wait time for Seven Dwarfs Mine Train between 9-10 AMpm?

Should we stop our marketing campaign to those currently receiving it?

Should medical providers stop recommending treatment for those currently receiving it?

Matching in R (ATT)

library(MatchIt)
m <- matchit(
  qsmk ~ sex +
    race + age + I(age^2) + education +
    smokeintensity + I(smokeintensity^2) +
    smokeyrs + I(smokeyrs^2) + exercise +
    active + wt71 + I(wt71^2),
  data = nhefs_complete
)
mlibrary(MatchIt)
m <- matchit(
  qsmk ~ sex +
    race + age + I(age^2) + education +
    smokeintensity + I(smokeintensity^2) +
    smokeyrs + I(smokeyrs^2) + exercise +
    active + wt71 + I(wt71^2),
  data = nhefs_complete
)
mlibrary(MatchIt)
m <- matchit(
  qsmk ~ sex +
    race + age + I(age^2) + education +
    smokeintensity + I(smokeintensity^2) +
    smokeyrs + I(smokeyrs^2) + exercise +
    active + wt71 + I(wt71^2),
  data = nhefs_complete
)
mlibrary(MatchIt)
m <- matchit(
  qsmk ~ sex +
    race + age + I(age^2) + education +
    smokeintensity + I(smokeintensity^2) +
    smokeyrs + I(smokeyrs^2) + exercise +
    active + wt71 + I(wt71^2),
  data = nhefs_complete
)
m

A matchit object
 - method: 1:1 nearest neighbor matching without replacement
 - distance: Propensity score
             - estimated with logistic regression
 - number of obs.: 1566 (original), 806 (matched)
 - target estimand: ATT
 - covariates: sex, race, age, I(age^2), education, smokeintensity, I(smokeintensity^2), smokeyrs, I(smokeyrs^2), exercise, active, wt71, I(wt71^2)

Matching in R (ATT)

matched_data <- get_matches(m, id = "i")
as_tibble(matched_data)

# A tibble: 806 × 71
   i     subclass weights  seqn  qsmk death yrdth modth
   <chr> <fct>      <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>
 1 11    1              1   428     1     0    NA    NA
 2 1220  1              1 23045     0     0    NA    NA
 3 15    2              1   446     1     1    88     1
 4 1082  2              1 22294     0     0    NA    NA
 5 18    3              1   596     1     0    NA    NA
 6 534   3              1 14088     0     0    NA    NA
 7 23    4              1   618     1     0    NA    NA
 8 697   4              1 18085     0     0    NA    NA
 9 27    5              1   806     1     0    NA    NA
10 879   5              1 21128     0     0    NA    NA
# ℹ 796 more rows
# ℹ 63 more variables: dadth <dbl>, sbp <dbl>, dbp <dbl>,
#   sex <fct>, age <dbl>, race <fct>, …

Target estimands

Average Treatment Effect among the Controls (ATC)

Target estimands

Estimand	Target population	Example Research Question
ATU	Unexposed (control) observations	Should we add extra magic hours for all days to change the wait time for Seven Dwarfs Mine Train between 9-10 AMpm? Should we extend our marketing campaign to those not receiving it? Should medical providers extend treatment to those not currently receiving it?

ATU

Unexposed (control) observations

Should we add extra magic hours for all days to change the wait time for Seven Dwarfs Mine Train between 9-10 AMpm?

Should we extend our marketing campaign to those not receiving it?

Should medical providers extend treatment to those not currently receiving it?

Matching in R (ATC)

m <- matchit(
  qsmk ~ sex +
    race + age + I(age^2) + education +
    smokeintensity + I(smokeintensity^2) +
    smokeyrs + I(smokeyrs^2) + exercise +
    active + wt71 + I(wt71^2),
  data = nhefs_complete,
  estimand = "ATC"
)
mm <- matchit(
  qsmk ~ sex +
    race + age + I(age^2) + education +
    smokeintensity + I(smokeintensity^2) +
    smokeyrs + I(smokeyrs^2) + exercise +
    active + wt71 + I(wt71^2),
  data = nhefs_complete,
  estimand = "ATC"
)
m

A matchit object
 - method: 1:1 nearest neighbor matching without replacement
 - distance: Propensity score
             - estimated with logistic regression
 - number of obs.: 1566 (original), 806 (matched)
 - target estimand: ATC
 - covariates: sex, race, age, I(age^2), education, smokeintensity, I(smokeintensity^2), smokeyrs, I(smokeyrs^2), exercise, active, wt71, I(wt71^2)

Target estimands

Average Treatment Effect among the Matched (ATM)

Target estimands

Estimand	Target population	Example Research Question
ATM	Evenly matchable	Are there some days we should change whether we are offering extra magic hours in order to change the wait time for Seven Dwarfs Mine Train between 9-10 AMpm? Is there an effect of the exposure for some observations? Should those at clinical equipoise receive treatment?

ATM

Evenly matchable

Are there some days we should change whether we are offering extra magic hours in order to change the wait time for Seven Dwarfs Mine Train between 9-10 AMpm?

Is there an effect of the exposure for some observations?

Should those at clinical equipoise receive treatment?

Matching in R (ATM)

m <- matchit(
  qsmk ~ sex +
    race + age + I(age^2) + education +
    smokeintensity + I(smokeintensity^2) +
    smokeyrs + I(smokeyrs^2) + exercise +
    active + wt71 + I(wt71^2),
  data = nhefs_complete,
  link = "linear.logit",
  caliper = 0.1
)
mm <- matchit(
  qsmk ~ sex +
    race + age + I(age^2) + education +
    smokeintensity + I(smokeintensity^2) +
    smokeyrs + I(smokeyrs^2) + exercise +
    active + wt71 + I(wt71^2),
  data = nhefs_complete,
  link = "linear.logit",
  caliper = 0.1
)
m

Observations with propensity scores (on the linear logit scale) within 0.1 standard errors (the caliper) will be discarded

Matching in R (ATM)

A matchit object
 - method: 1:1 nearest neighbor matching without replacement
 - distance: Propensity score [caliper]
             - estimated with logistic regression and linearized
 - caliper: <distance> (0.063)
 - number of obs.: 1566 (original), 780 (matched)
 - target estimand: ATT
 - covariates: sex, race, age, I(age^2), education, smokeintensity, I(smokeintensity^2), smokeyrs, I(smokeyrs^2), exercise, active, wt71, I(wt71^2)

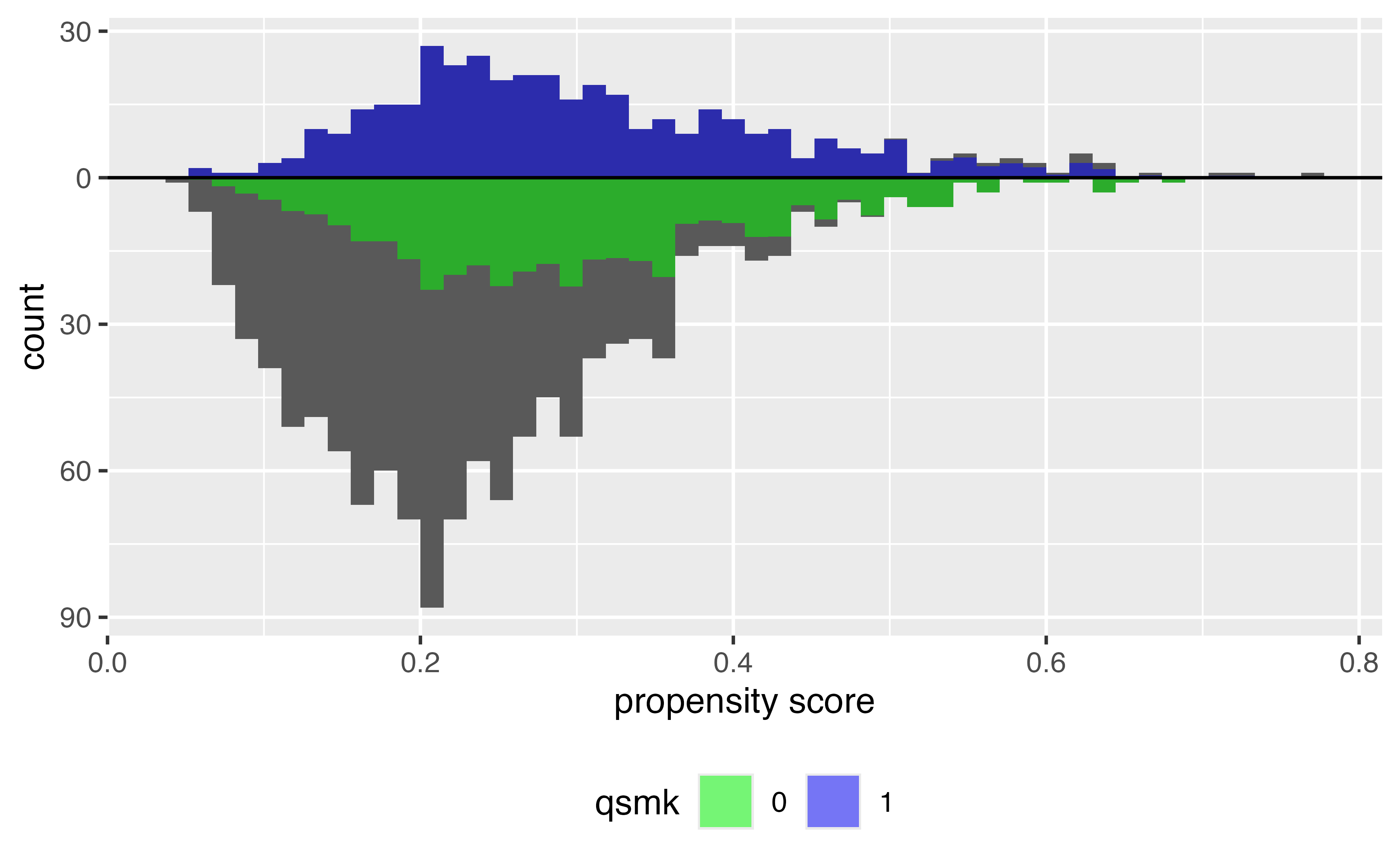

Matching in R (ATM)

matched_data <- get_matches(m, id = "i")
as_tibble(matched_data)

# A tibble: 780 × 71
   i     subclass weights  seqn  qsmk death yrdth modth
   <chr> <fct>      <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>
 1 11    1              1   428     1     0    NA    NA
 2 1220  1              1 23045     0     0    NA    NA
 3 15    2              1   446     1     1    88     1
 4 1082  2              1 22294     0     0    NA    NA
 5 18    3              1   596     1     0    NA    NA
 6 534   3              1 14088     0     0    NA    NA
 7 23    4              1   618     1     0    NA    NA
 8 697   4              1 18085     0     0    NA    NA
 9 27    5              1   806     1     0    NA    NA
10 879   5              1 21128     0     0    NA    NA
# ℹ 770 more rows
# ℹ 63 more variables: dadth <dbl>, sbp <dbl>, dbp <dbl>,
#   sex <fct>, age <dbl>, race <fct>, …

Your Turn 1

06:00

Using the propensity scores you created in the previous exercise, create a “matched” data set using the ATM method with a caliper of 0.2.

Propensity scores

Matching

Weighting

Stratification

Direct Adjustment

…

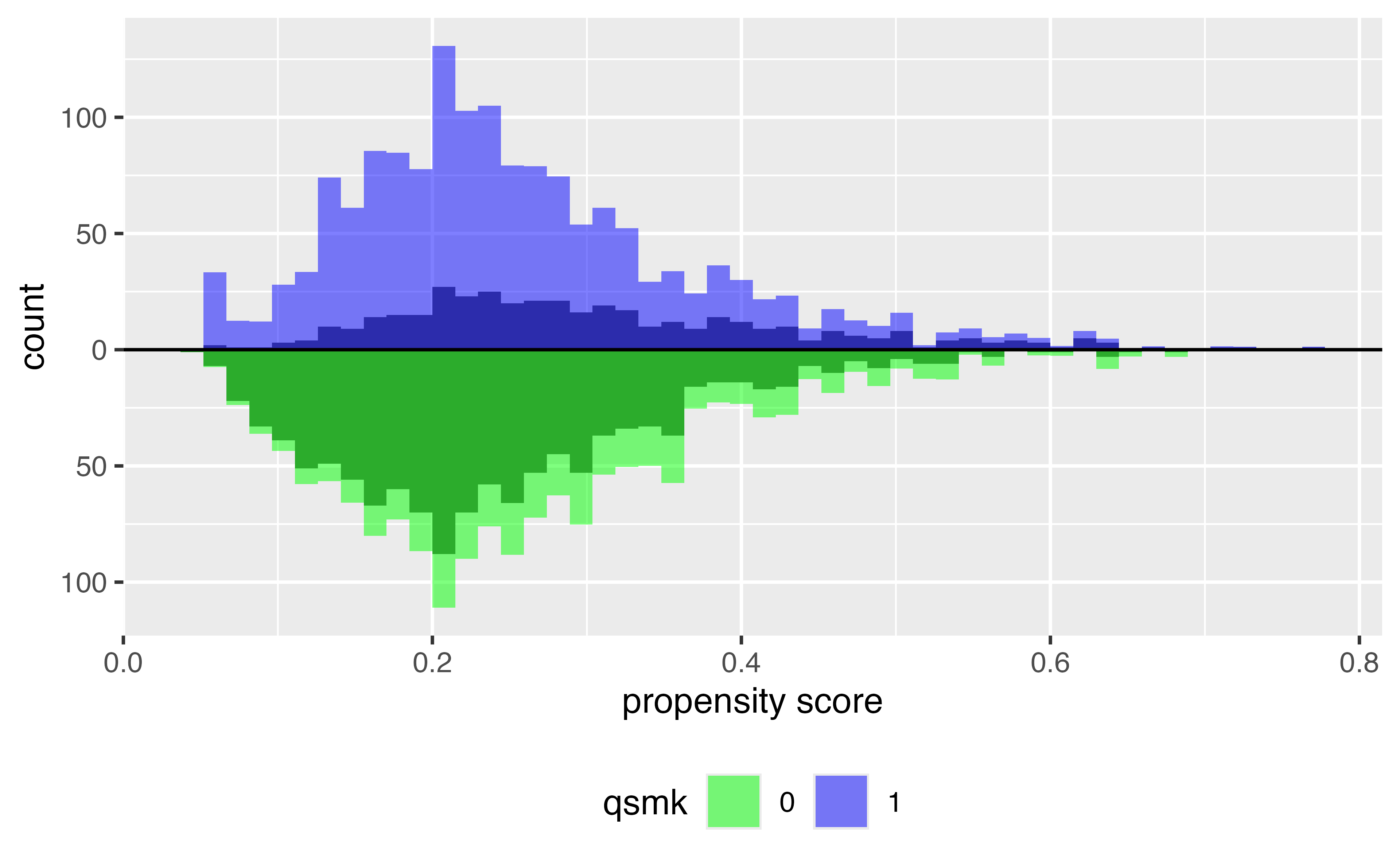

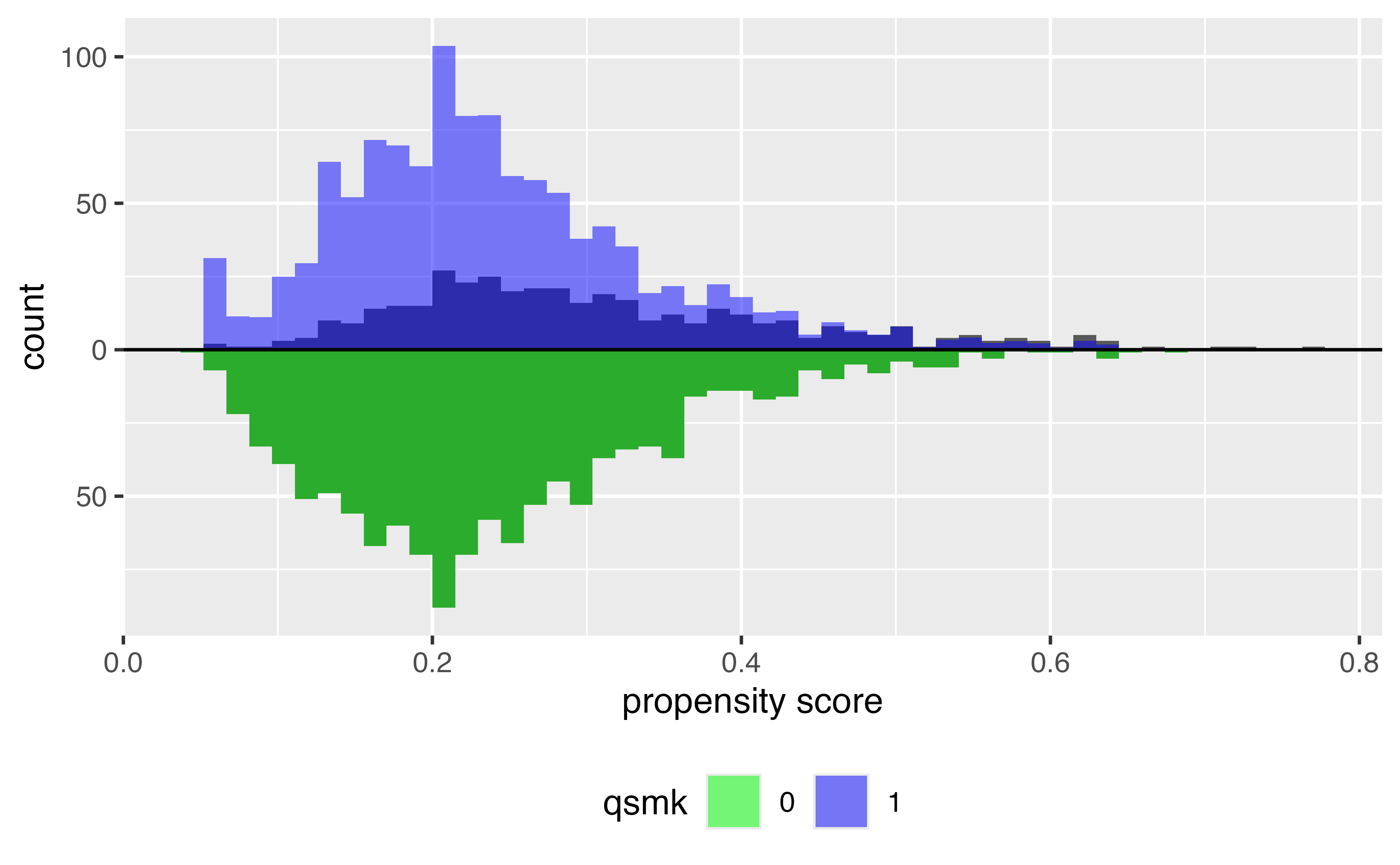

Histogram of propensity scores

Target estimands: ATE

Average Treatment Effect (ATE)

(Z / p) + ((1 - Z) / (1 - p))

ATE

Target estimands: ATT & ATC

Average Treatment Effect Among the Treated (ATT)

((p * Z) / p) + ((p * (1 - Z)) / (1 - p))

Target estimands: ATT & ATC

Average Treatment Effect Among the Controls (ATC)

(((1 - p) * Z) / p) + (((1 - p) * (1 - Z)) / (1 - p))

ATT

ATC

Target estimands: ATM & ATO

Average Treatment Effect Among the Evenly Matchable (ATM)

pmin(p, 1 - p) / (Z * p + (1 - Z) * (1 - p))

Target estimands: ATM & ATO

Average Treatment Effect Among the Overlap Population

(1 - p) * Z + p * (1 - Z)

Target estimands

Estimand	Target population	Example Research Question
ATO	Overlap population	Same as ATM

ATM

ATO

ATE in R

Average Treatment Effect (ATE)

library(propensity)
df <- propensity_model |>
  augment(type.predict = "response", data = nhefs_complete) |>
  mutate(w_ate = wt_ate(.fitted, qsmk)) library(propensity)
df <- propensity_model |>
  augment(type.predict = "response", data = nhefs_complete) |>
  mutate(w_ate = wt_ate(.fitted, qsmk))

Your Turn 2

06:00

Using Propensity Scores

Propensity scores

Propensity scores

Target estimands

Average Treatment Effect (ATE)

Target estimands

Target estimands

Average Treatment Effect among the Treated (ATT)

Target estimands

Matching in R (ATT)

Matching in R (ATT)

Target estimands

Average Treatment Effect among the Controls (ATC)

Target estimands

Matching in R (ATC)

Target estimands

Average Treatment Effect among the Matched (ATM)

Target estimands

Matching in R (ATM)

Matching in R (ATM)

Matching in R (ATM)

Your Turn 1

Using the propensity scores you created in the previous exercise, create a “matched” data set using the ATM method with a caliper of 0.2.

Propensity scores

Histogram of propensity scores

Target estimands: ATE

ATE

Target estimands: ATT & ATC

Target estimands: ATT & ATC

ATT

ATC

Target estimands: ATM & ATO

Target estimands: ATM & ATO

Target estimands

ATM

ATO

ATE in R

Your Turn 2

Using the propensity scores you created in the previous exercise, add the ATE weights to your data frame

Stretch: Using the same propensity scores, create ATM weights
