Tipping Point Sensitivity Analyses

Lucy D’Agostino McGowan

Wake Forest University

Recall: Propensity scores

Rosenbaum and Rubin showed in observational studies, conditioning on propensity scores can lead to unbiased estimates of the exposure effect

  1. There are no unmeasured confounders
  2. Every subject has a nonzero probability of receiving either exposure

Quantifying Unmeasured Confounding

Quantifying Unmeasured Confounding

  1. The exposure-outcome effect
  2. The exposure-unmeasured confounder effect
  3. The unmeasured confounder-outcome effect

Quantifying Unmeasured Confounding

D’Agostino McGowan, L. Sensitivity Analyses for Unmeasured Confounders. Curr Epidemiol Rep 9, 361–375 (2022)

What will tip our confidence bound to cross zero?

Quantifying Unmeasured Confounding

D’Agostino McGowan, L. Sensitivity Analyses for Unmeasured Confounders. Curr Epidemiol Rep 9, 361–375 (2022)

tipr

Question

Analysis

  • New-user design
  • Matched 42,217 new metformin users to 42,217 new sulfonylurea users
  • Fit adjusted Cox proportional hazards model on the matched cohort

Results

  • Outcome: Lung Cancer
  • Adjusted Hazard Ratio: 0.87 (0.79, 0.96)

What if alcohol consumption is an unmeasured confounder?

What if heavy alcohol consumption is prevalent among 4% of Metformin users and 6% of Sulfonylurea users?

Meadows SO, Engel CC, Collins RL, Beckman RL, Cefalu M, Hawes-Dawson J, et al. 2015 health related behaviors survey: Substance use among US active-duty service members. RAND; 2018.

tipr Example

What if we assume the effect of alcohol consumption on lung cancer after adjusting for other confounders is 2?

library(tipr)
adjust_hr_with_binary(
  effect_observed = c(0.79, 0.87, 0.96),
  exposed_confounder_prev = .04,
  unexposed_confounder_prev = .06,
  confounder_outcome_effect = 2
)

Results

  • Outcome: Lung Cancer
  • Adjusted Hazard Ratio: 0.87 (0.79, 0.96)

tipr Example

What if we assume the effect of alcohol consumption on lung cancer after adjusting for other confounders is 2?

library(tipr)
adjust_hr_with_binary(
  effect_observed = c(0.79, 0.87, 0.96),
  exposed_confounder_prev = .04,
  unexposed_confounder_prev = .06,
  confounder_outcome_effect = 2
)

What if heavy alcohol consumption is prevalent among 4% of Metformin users and 6% of Sulfonylurea users?

Meadows SO, Engel CC, Collins RL, Beckman RL, Cefalu M, Hawes-Dawson J, et al. 2015 health related behaviors survey: Substance use among US active-duty service members. RAND; 2018.

tipr Example

What if we assume the effect of alcohol consumption on lung cancer after adjusting for other confounders is 2?

library(tipr)
adjust_hr_with_binary(
  effect_observed = c(0.79, 0.87, 0.96),
  exposed_confounder_prev = .04,
  unexposed_confounder_prev = .06,
  confounder_outcome_effect = 2
)

tipr Example

# A tibble: 3 × 5
  hr_adjusted hr_observed exposed_confounder_prev unexposed_confounder_prev
        <dbl>       <dbl>                   <dbl>                     <dbl>
1       0.805        0.79                    0.04                      0.06
2       0.887        0.87                    0.04                      0.06
3       0.978        0.96                    0.04                      0.06
# ℹ 1 more variable: confounder_outcome_effect <dbl>

“If heavy alcohol consumption differed between groups, with 4% prevalence among metformin users and 6% among sulfonylureas users, and had an HR of 2 with lung cancer incidence the updated adjusted effect of metformin on lung cancer incidence would be an HR of 0.89 (95% CI: 0.81–0.98). Should an unmeasured confounder like this exist, our effect of metformin on lung cancer incidence would be attenuated and fall much closer to the null.

tipr Example

sens <- adjust_hr_with_binary(
  effect_observed = 0.96,
  exposed_confounder_prev = .04,
  unexposed_confounder_prev = .06,
  confounder_outcome_effect = seq(1.1, 3.5, by = 0.1)
)

tipr Example

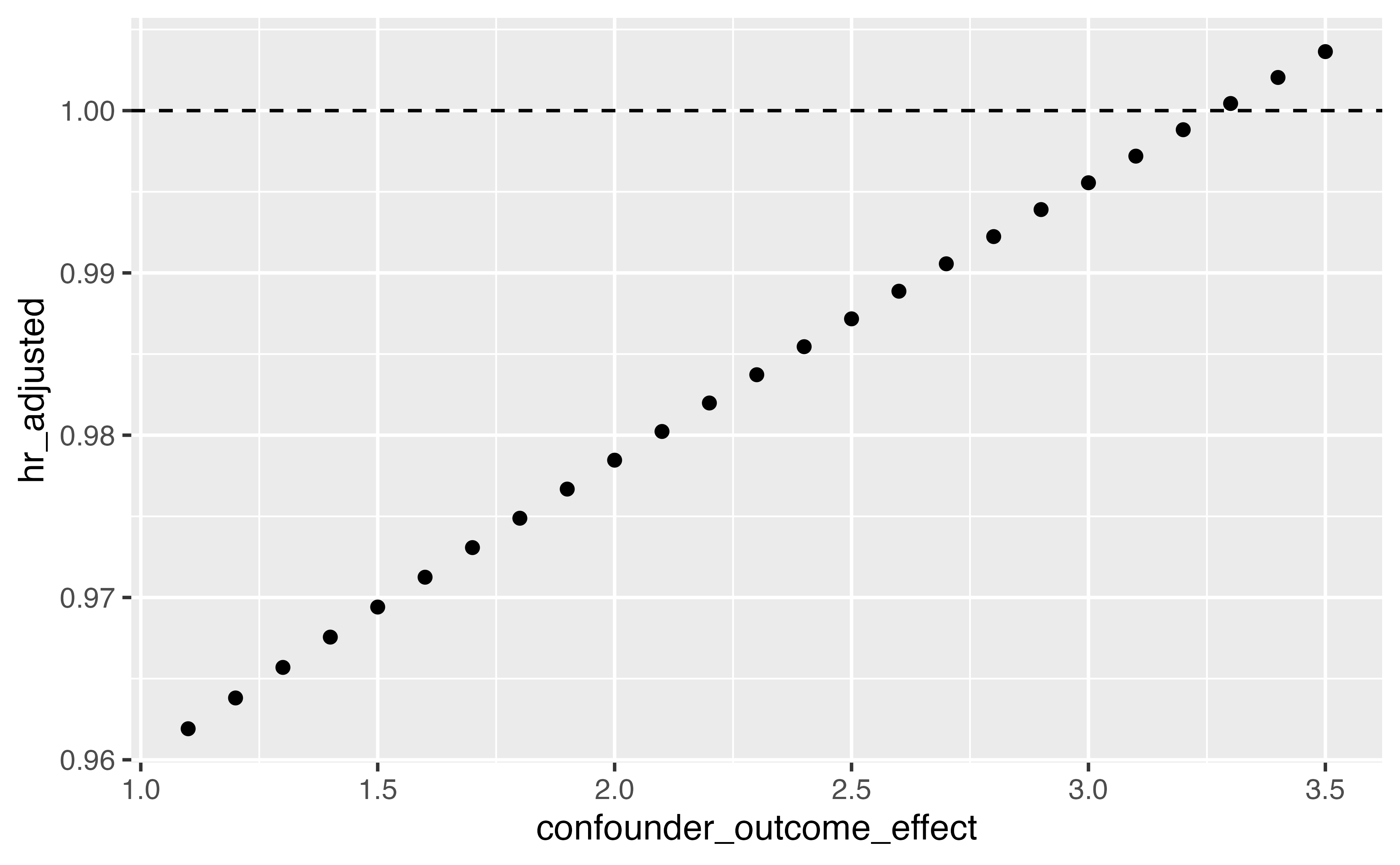

library(ggplot2)
ggplot(sens, aes(x = confounder_outcome_effect, y = hr_adjusted)) +
  geom_point() +
  geom_hline(yintercept = 1, lty = 2)

tipr Example

library(dplyr)
tip_hr_with_binary(
  effect_observed = 0.96,
  exposed_confounder_prev = .04,
  unexposed_confounder_prev = .06
) |>
  select(confounder_outcome_effect)

tipr Example

# A tibble: 1 × 1
  confounder_outcome_effect
                      <dbl>
1                      3.27

“If heavy alcohol consumption differed between groups, with 4% prevalence among metformin users and 6% among sulfonylureas users, it would need to have an association with lung cancer incidence of 3.27 to tip this analysis at the 5% level, rendering it inconclusive. This effect is larger than the understood association between lung cancer and alcohol consumption.”

What is known about the unmeasured confounder?

Both exposure and outcome relationship is known

  • adjust_* functions

Only one of the exposure/outcome relationships is known

  • adjust_* functions in an array
  • tip_* functions

Nothing is known

  • adjust_* or tip_* functions in an array
  • tip_coef_with_r2() (measured confounders)
  • Robustness value r_value() & E-values e_value()

Disney Data: Extra magic morning & wait times

tip_coef()

  • effect_observed: observed exposure - outcome effect 6.17 minutes (95% CI: 2.02, 10.40)

Disney Data

tip_coef()

  • exposure_confounder_effect: scaled mean difference between the unmeasured confounder in the exposed and unexposed population

Disney Data

tip_coef()

  • confounder_outcome_effect: relationship between the unmeasured confounder and outcome

Your turn

05:00

Use the tip_coef() function to conduct a sensitivity analysis for the estimate from your previous exercises. Use the lower bound of the confidence interval for the effect and 0.1 for the exposure-confounder effect.
